FUEL STORAGE TANKS

Fuel Storage Tanks from Fuelling Technology

Fuelling Technology can supply a wide range of storage tanks in a variety of sizes, types and styles – ranging from 1,000 litres to 150,000 litres. We can also provide specialist storage tanks fabricated to individual customer design, including multi-compartment and single skin tanks. Not only can you choose from our wide range of standard tanks, or your own specific design, we also offer the ability for you to have the tank finished in your corporate colours specifically matched to your own RAL number.

Bunded Tanks

Totally enclosed bunded tanks are secure units, with all fill points contained within a lockable fill cabinet. These tanks come with a lockable bund hatch as standard and with the option of a pump house, complete with roller shutter door. These units can be supplied with pumps, flow meters and auto shut off nozzles on request. All tanks are pressure tested prior to dispatch. They can have top of bottom outlets, with a manual shut off valve accessible through bund hatch. There is less site preparation and no need to build a concrete bund or support walls. The tanks must be positioned on a solid level concrete base.

Our Fuel Storage Tanks are manufactured to BS799 Part 5, and pressure tested to 0.7 bar. All welding is carried out by a coded welder to BS4872. The primary oil tank is contained within its own bunded area, with a capacity greater than 110%.

Bunded tanks are also available for the storage of biofuels, biodiesel, PPO and E85.

Fuel Tank features can include:

BSP suction line with valve
BSP off-set fill pipe with nipple, valve, cap and chain
Venting system
Raised Manway
Drip tray
Domed roof
Tank internally braced and fully welded
Rail to clip on fall arrest equipment
Lifting lugs
Tank base runner/bearers
Spare sockets 3 x 1.5”
Plates for ancillary equipment
Cable tray
Earthing bolt
Louvred air vent in cabinet
Pump plinth if required
Quality pack if required
Tank working capacity label
Working drawing prior to manufacture

Underground Tanks

Double skin underground storage tanks have an internal shell manufactured from 6mm steel, and an external shell manufactured from 4mm steel. The dished ends are 6mm thick. They are supplied with DSA 3-suction 600mm diameter man-lid with double tapered sockets and malleable iron plugs.

Also available as standard is a 1.2m2 access chamber frame, nylon ratchet holding down straps, brass calibrated dip rod, lifting lugs and a polypropylene glycol and water mix in the interstitial space between the two skins.

The standard paint finish for double skin underground storage tanks is black bitumen, with the option of polyurethane or two-coat epoxy. A heavy-duty ground level manhole cover and frame (760mm x 610mm) and multi-compartment tanks are available as optional extras. A LAG14er leak detection system kit is also available if required.

Single skin underground storage tanks are available on request.

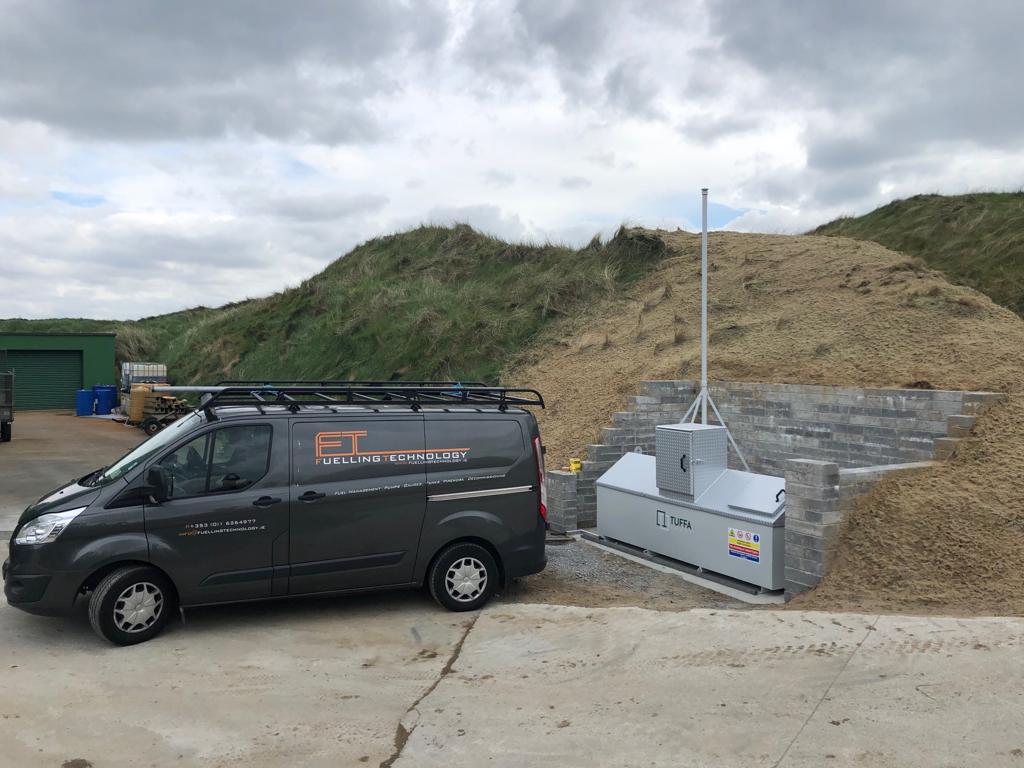

Bunded Fuel Storage tank

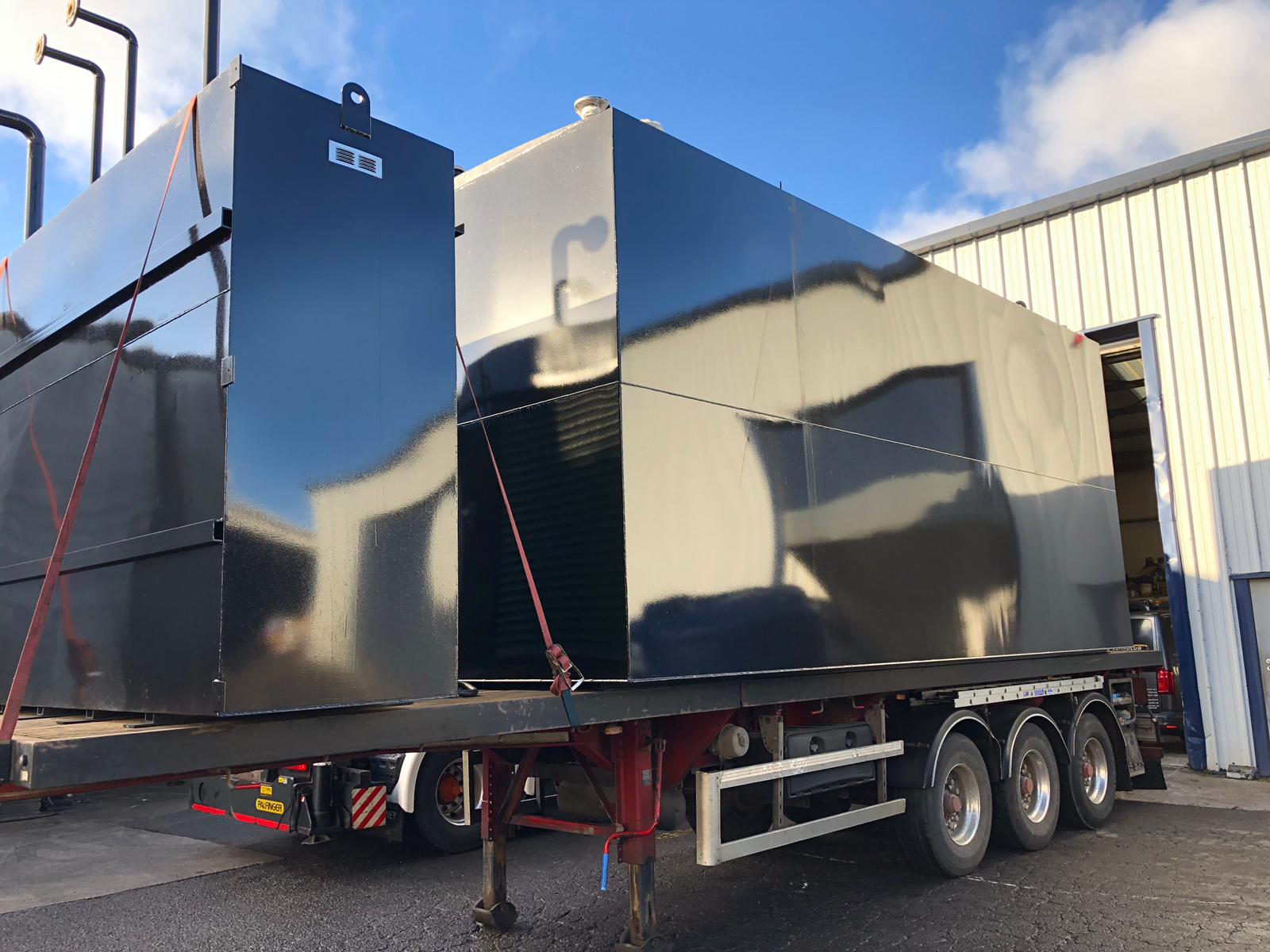

Bunded Tank for Bus Depot

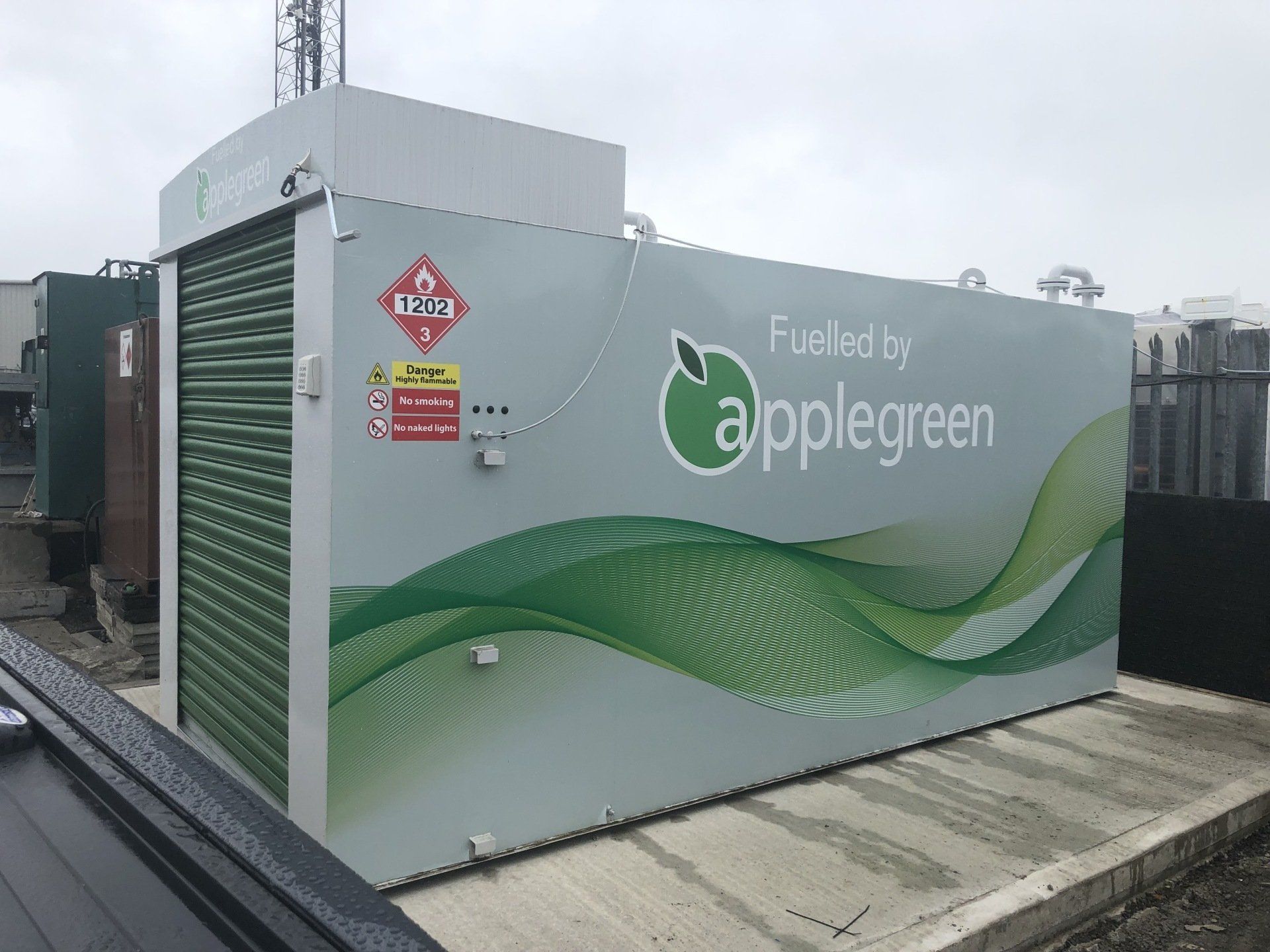

Logo Tank with your details
Slide title

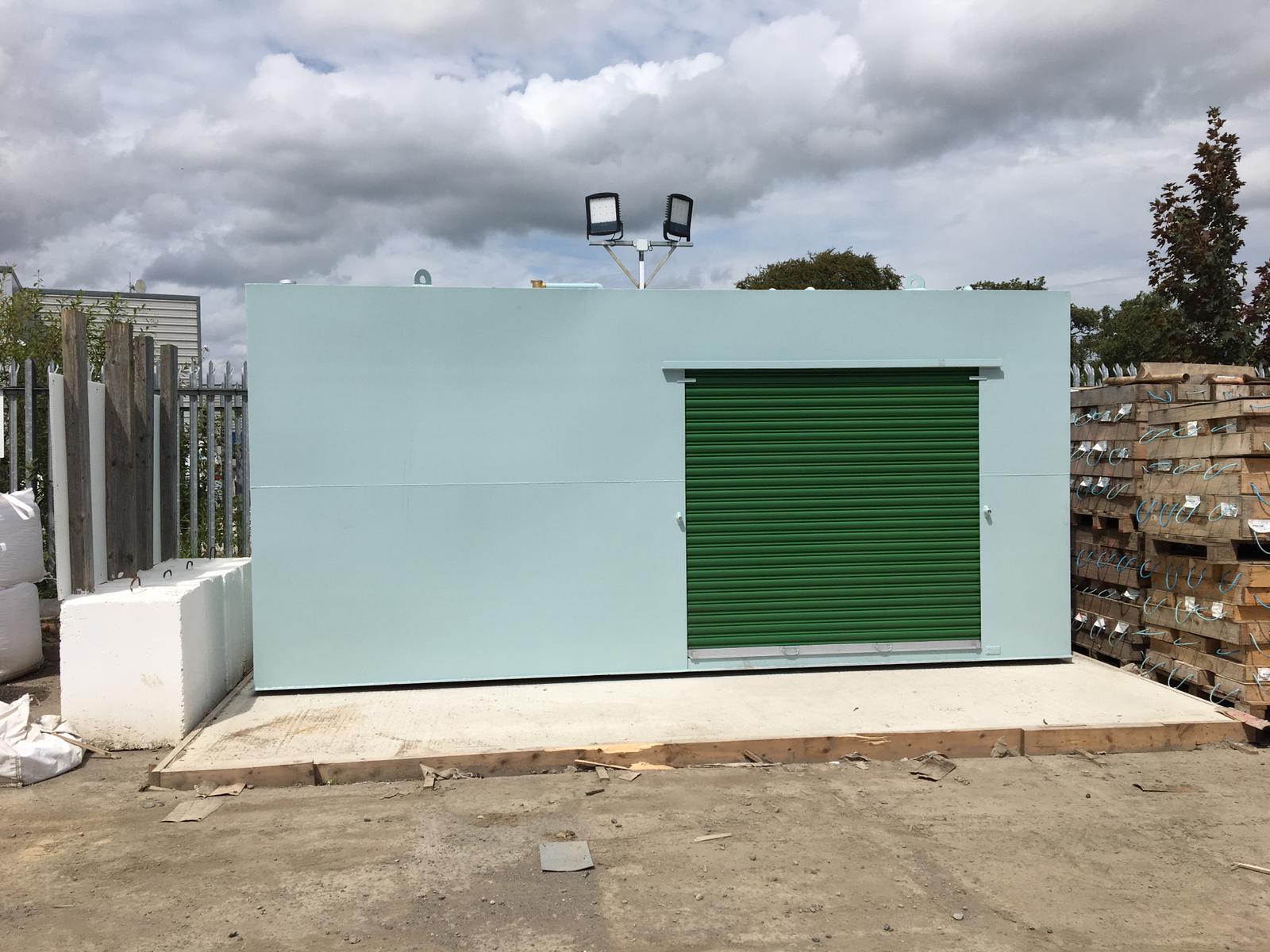

Secure Shutter door on Pump house

Button

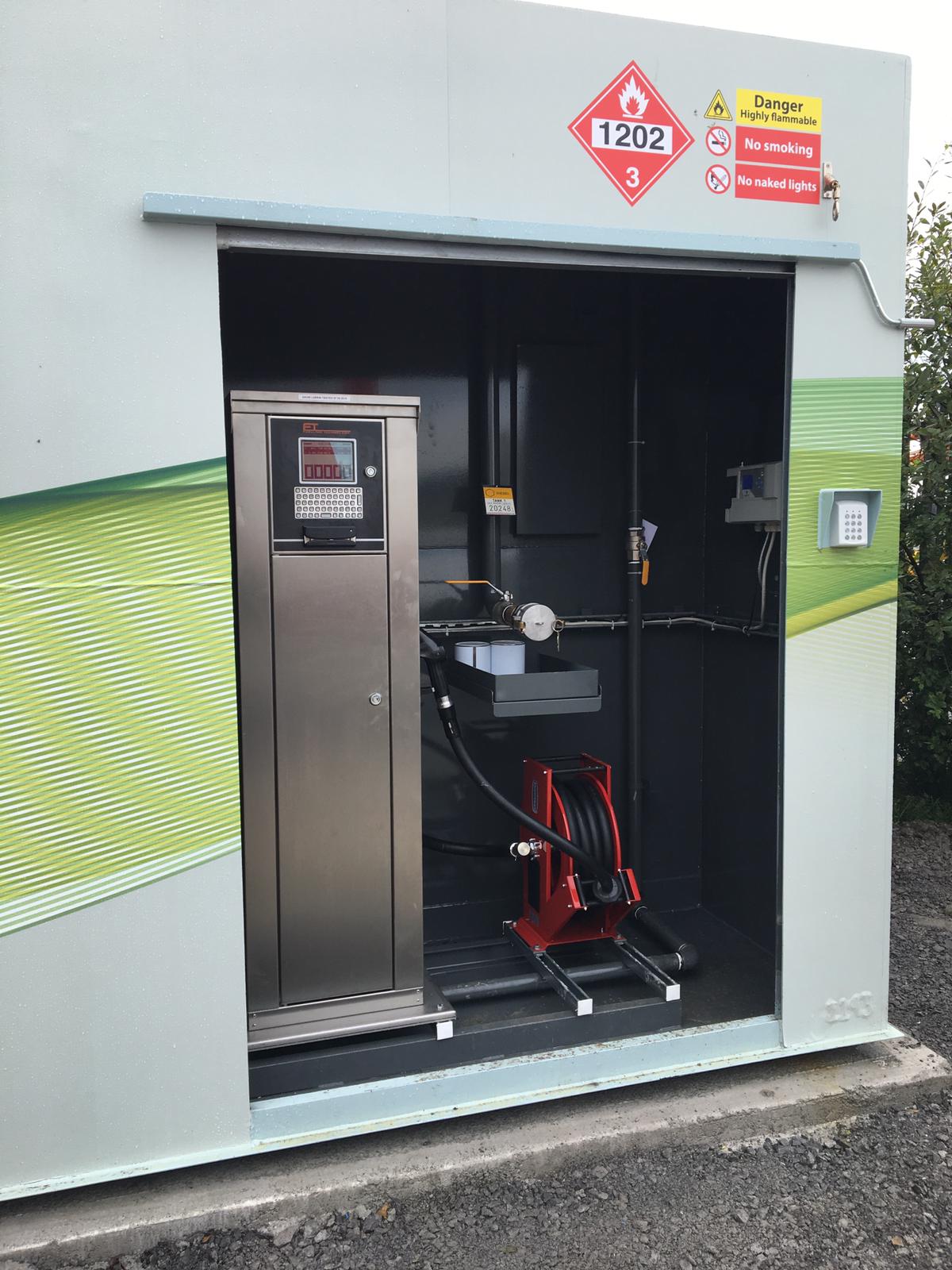

Overground Petrol Fuel Storage

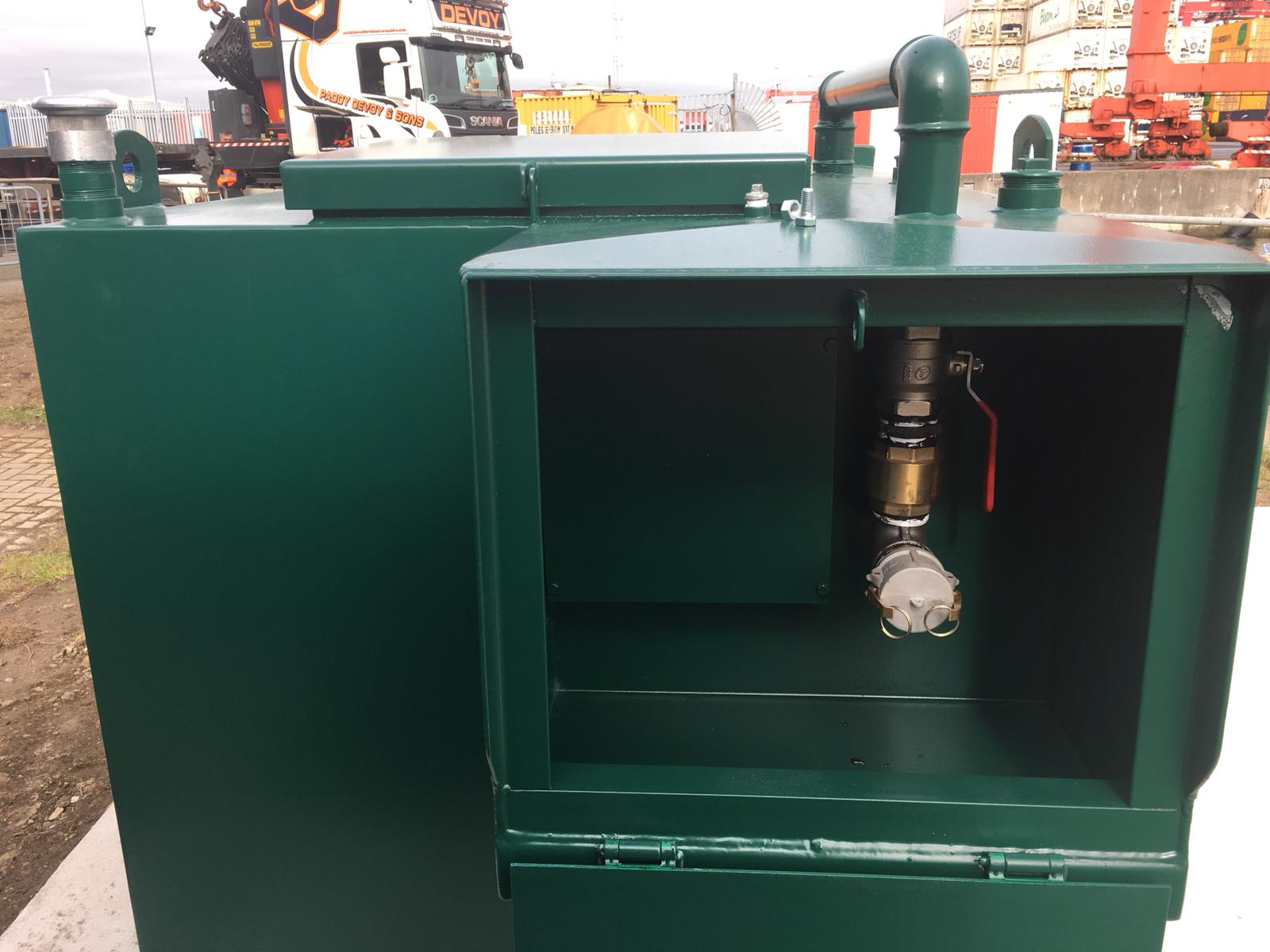

Fill Point Cabinet

Button

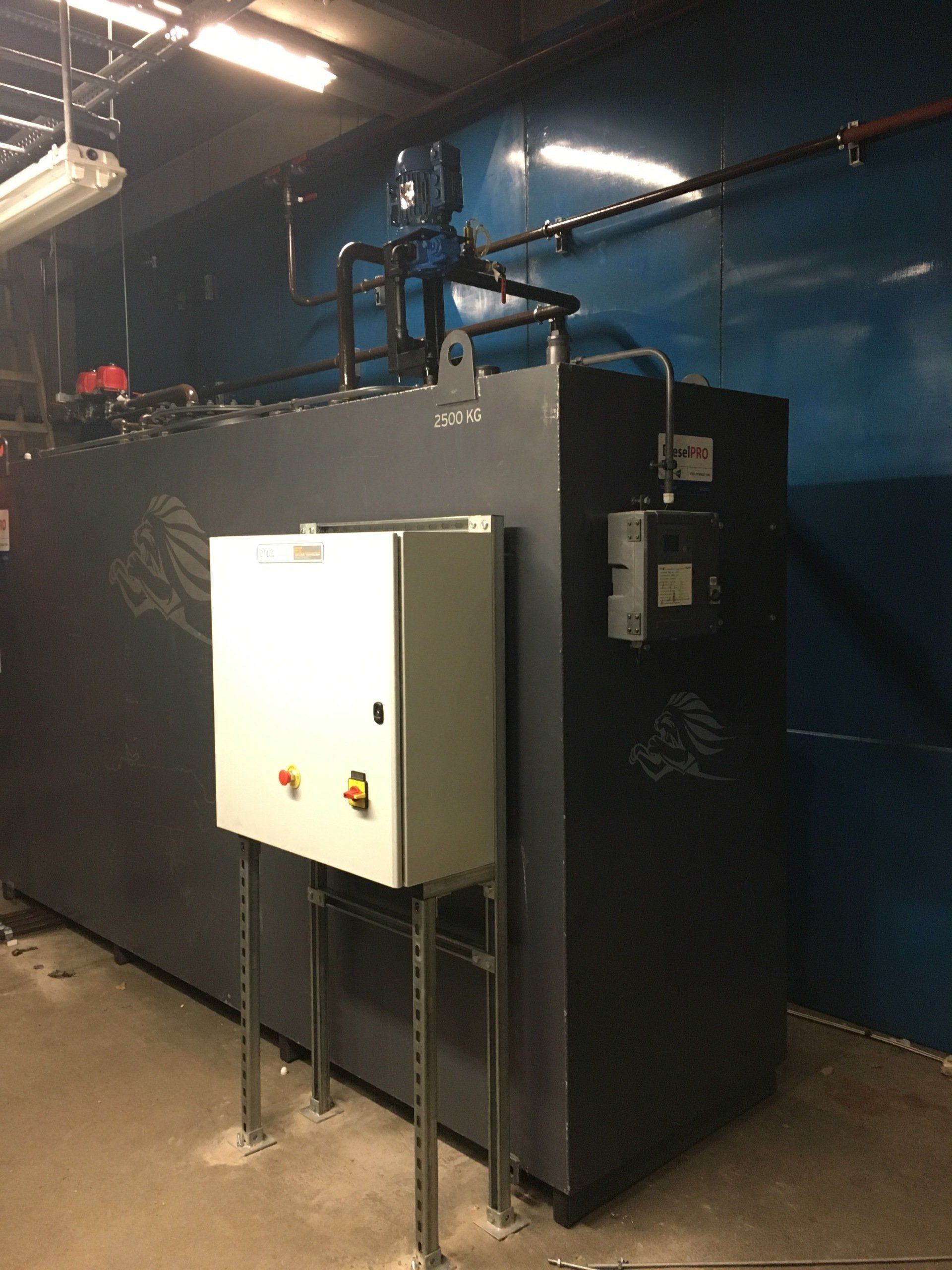

Generator Day Storage Tank

Button
Slide title

Write your caption here

Button
Slide title

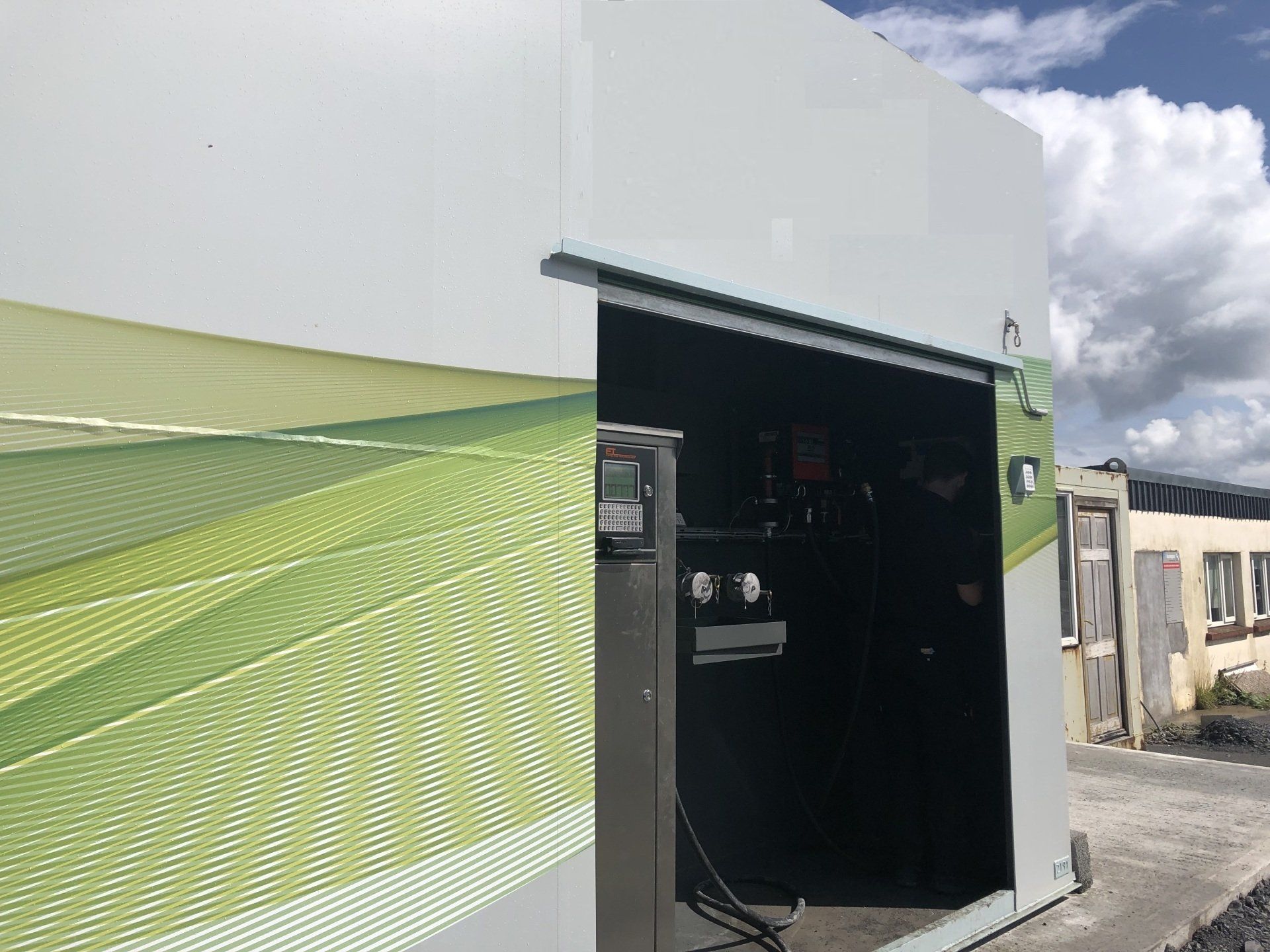

Automamtic Roller Shutter Door

Button

DSA 3-Suction Man Lid

All underground storage tank compartments are supplied with a 600mm diameter DSA man-lid which includes:

Three 50mm double-tapered suction sockets with malleable iron plugs
Three 100mm double-tapered BSP sockets with plugs for fill, vent and gauge. Direct dip through fill socket.
Each lid has one 76mm spare BSP socket and plug

The EU Parliament has issued stricter emission standards (EURO 4 in 2006, EURO 5 in 2008) for heavy duty diesel engines. AdBlue is the trade name for an aqueous solution of urea (32.5%). This reducing agent converts harmful nitrogen oxides into innocuous nitrogen and water. Since AdBlue is corrosive, certain materials are required for its handling and storage. Recommendations for these materials have been made by CEFIC (European Chemical Industry Council) according to DIN 70 070.

To meet these EU regulations, the automobile industry has decided to introduce SCR technology for diesel powered heavy goods vehicles. SCR is the abbreviation for Selective Catalytic Reduction, and refers to the catalytic conversion of harmful exhaust gases into naturally occurring substances.

Bunded adblue tanks

Bunded Adblue tanks are designed for the safe, secure and appropriate storage of AdBlue at agricultural, commercial, industrial and institutional premises. Every AdBlue Point uniquely combines the benefits of forecourt style Adblue refuelling, with the assurance of supply, which only on-site storage can provide.

All Fuel Points are fully compliant with all prevailing and expected Irish, UK and EU fuel tank requirements. Each model is supplied complete with factory fitted adblue pump, delivery hose and automatic nozzle to ensure clean delivery.

Inner tank must remain clear while outer tank is blue.

Basic includes Pump, Meter and Automatic Nozzle

Standard Equipment

This Adblue tank is supplied complete with the following equipment as standard:
